Professional CNC controller system + Smartnest software best price for you

FOB Reference Price:Get Latest Price
US $0-800 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
plasma cutting machine
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HYD
Model Number:
F2300B
Dimension(L*W*H):
50*40*16cm
Weight:
8kg
Certification:
CE
shipping:
fast and safe
quality:
warranty
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton
Port
shenzhen
Lead Time :
1-3 work days after payment
Please contact us for more details and final price confirmation.

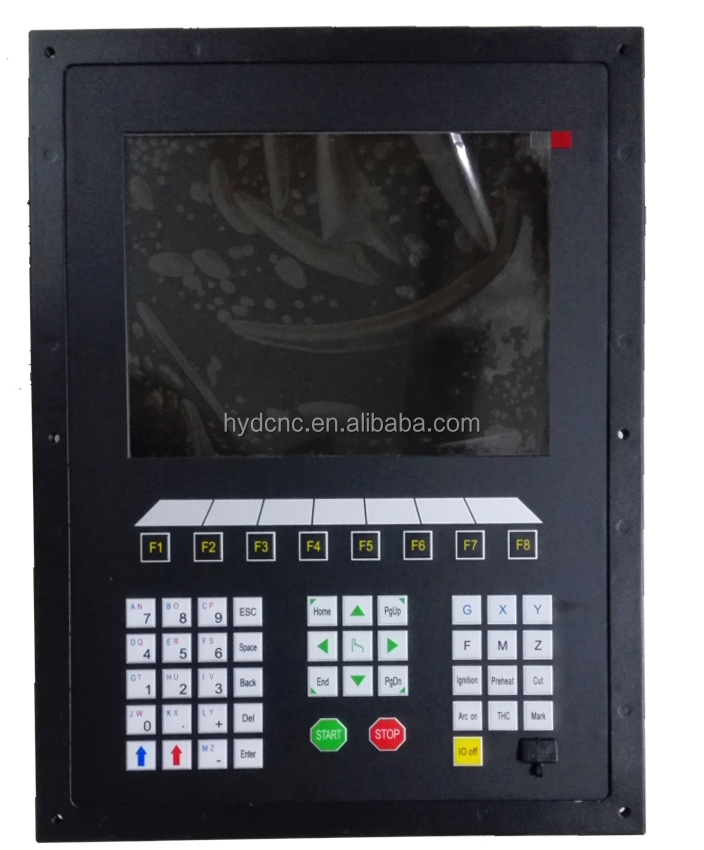

CNC Controller system + Samrt Nest software


Key features as follow,

1)10.4 inches 1024*768 dots color LCD, USB interface.
Man-Machine-Dialog software and Professional Hot Key design for easy cutting operation, user-friendly as Hypertherm’s EDGE controller.
2)Multi-language file system and menu, and the menu can be switched only by one key.
3)DSP core can control the machine move in high speed accurately, stably and in low noise.

4) Long-distance remote control can control the machine to move forward ,backward, left, right and cutting start, stop and so on (optional configuration).
5) Support the EIA code (G code) and various FastCAM,FreeNest,SmartNest,IBE softwares.
6) compact keyboard design and easy to input files.
7) Operations such as Proportion Zoom, Rotate, Mirror, Array display, Steel plate angle adjust…..all available and have professional solution in the CNC controller.
8) Coordinate system can be customized to support the two-dimensional coordinates of all eight kinds.
9) All input and output port type and the number can be customized (normally open or normally closed)
10) System Self-diagnosis for easy trouble-shooting.
11) all functions and techniques can upgrade online
12) Import and export files by single or all files.
13)   Support the Flame, Plasma, Dusting draw and Demonstration four kinds of mode.
14)   Flame and Plasma are separated in the control IO ports.
15)   Support THC, two level preheat, three level pierce in flame mode.
16)   Plasma arc feedback, positioning feedback, automatically shut down the arc at the corner.
17)   Support edge cutting. It can save the preheat time for the thick steel plate.
18) Movement speed can be real-time acceleration, deceleration.
19) According to plate thickness, the cutting speed is automatically restricted by a speed limit in the corner, effectively preventing over burn.
20)Dynamic/static illustration of the process, graphics zoom in / out, dynamically tracking cut-off point under zooming state.
21)Automatically memorize the working situation and the last cutting point when power off.
22) "Cutting offset" function can avoid waste the steel plate when the nesting of the plate is calculated wrong.
23)set up different administration authority and the corresponding password to safeguard the interests of managers

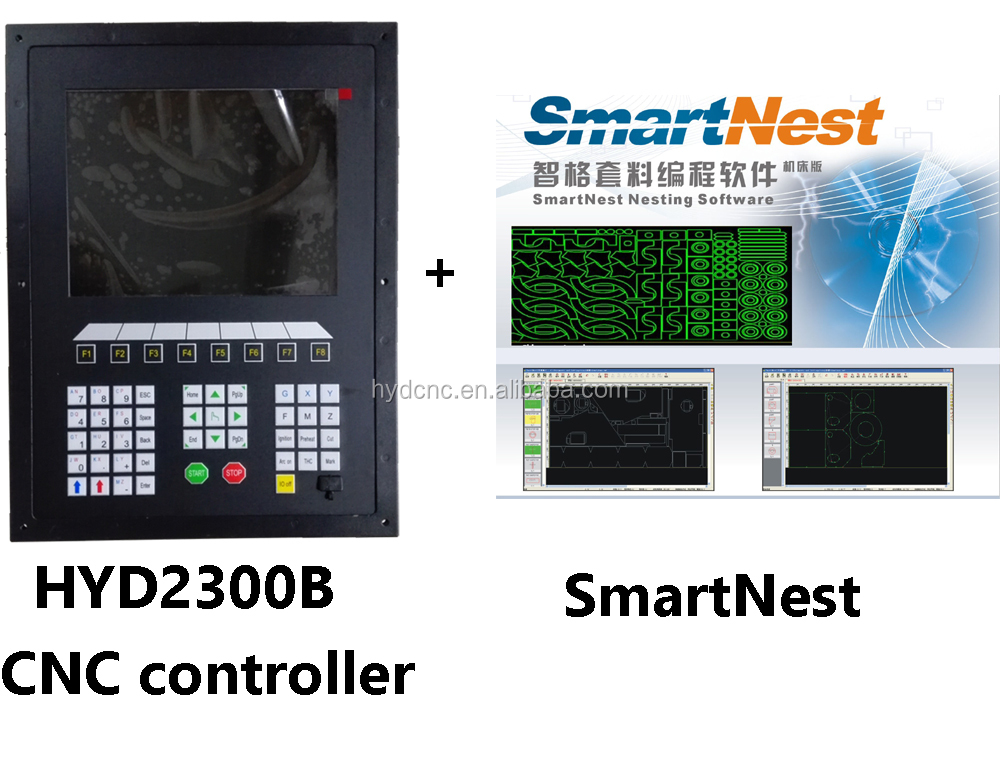

 2300b.jpg2300b and smart.jpg

smart nest.jpg
