Stand -alone capacitive torch height cnc controller CHC-400 for flame cutting machine

FOB Reference Price:Get Latest Price
US $1-262 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
flame cutting machine
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HYD
Model Number:
CHC-200E
Dimension(L*W*H):
176mm*50mm*105mm
Weight:
1.7kg
Certification:
CE
motor:
DC24V
power supply:
AC20V-24V or DC20V-36V
Output current:
1A-4A
shipping:
fast
quality:
warranty
certification:
CE
SupplyAbility
SupplyAbility:
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
Shenzhen
Lead Time :
2days
Stand -alone capacitive torch height cnc controller CHC-400 for flame cutting machine

It is the newest cap THC we designed for flame cutting,  stand alone type, support any cnc controller, widely used by almost China manufacturers, include Koike China, Messer China,  AMG...etc.
  Demo Video link:  http://v.youku.com/v_show/id_XMzE1NjI3Mzgw.html

It works with AC24V,  support DC 24V motor below 100A.


New features



Comparing to CHC-200D, CHC-200E has new features as follow,

1,         Increased more indicators to shows different states of THC.

2,         Output of collision-alarm, which is optical isolation output from THC, can be sent to CNC’s Alarm input to freeze machine’s move. This signal is effective on both manual/auto mode. The max output is 200mA, capable to drive most relays.

3,         Anti-collision function. On manual/auto mode, when metal or low-conductive item like hand touches sensor ring, THC would send out collision signal and lift torch up until no collision exist.

4,        When HF cable is disconnected or weakly connected, it would be indicated on the disconnection indicator. So after installation of HF cable, just shake the HF cable, the connection will be showed by the indicator.

5,         Sensitive and Accuracy is increased 100%.

6,         CHC200E uses digital logic control circuit for logic control, greatly improved anti-interference performance.

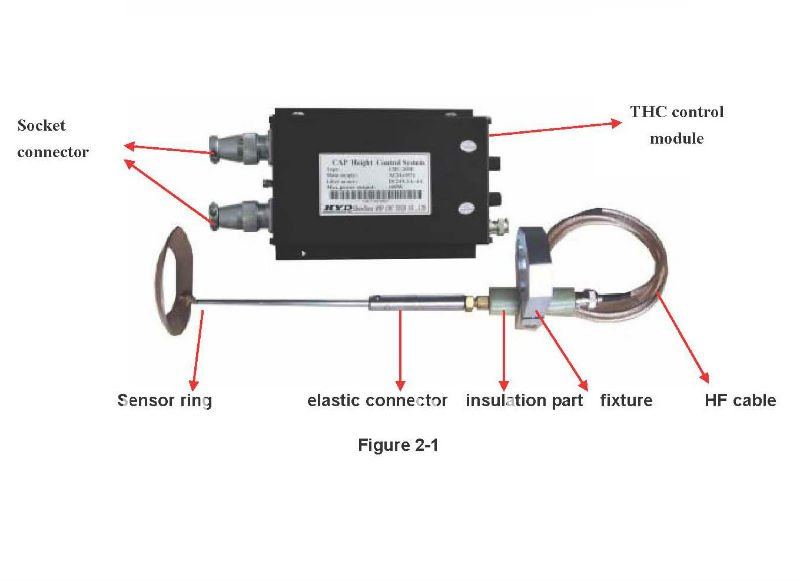

Our new cap THC in Messer's Workshop,
