torch height controller z-axis lifter

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HYD
Model Number:
lifter
Supply Ability
Supply Ability:
100 Piece/Pieces per Month

Specifications

1,plasma&flame cutting torch lifter
2,Motor DC24V, 30W......
3. ballscrew

We designed Z-axis lifter to support our arc voltage torch height controllers to secure better control accuracy; even most OEM manufacturers make lifter on their own. HYD’s THC requests lifter motor Up/Down voltage below 2V to secure high control accuracy of THC. Our lifter adopts Ball screw design and DC 24V motor with start voltage 1.2V, capable for lifting 40kg weight.



Specification,

Effective Z Axis Stroke: 200mm

Maximum Z Axis Speed: 2500mm/min

Motor: DC24V, 30W, 3000RPM, Gear ratio: 6:1.

Lifter net weight: 13kg

Package in wooden case: 17kg

Picture of Lifter as follow,

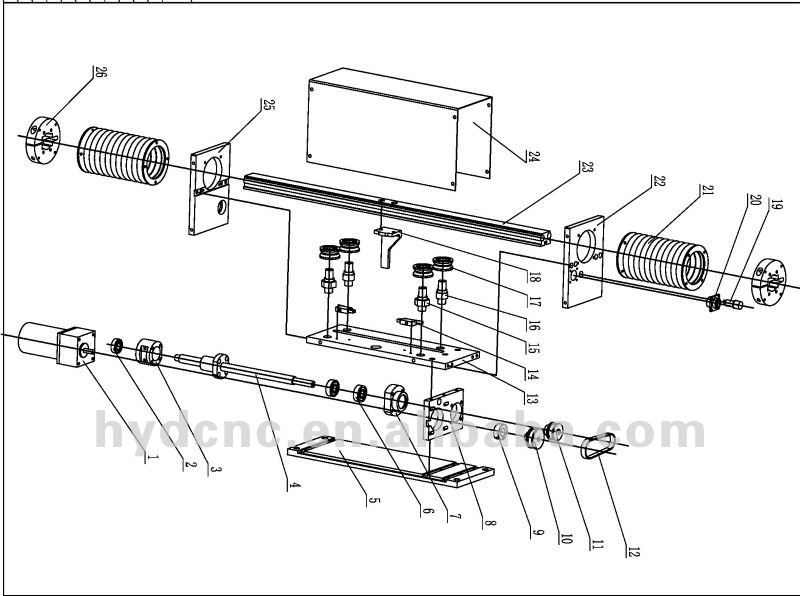

Lifter assemblely.jpgLifter size.jpg



cap installation.jpg
