industrial operator console for FASTCNC controller

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HYD
Model Number:
HYD
SupplyAbility
SupplyAbility:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
yellow carton
Port
SHENZHEN
Lead Time :
within 3-5days

Specifications

1. industrial cutting operation design
2. customer logo available.
3. for FASTCNC controller,,,,position control mode

It is the operation panel we designed for Position control mode controllers like Fast CNC.

Follow we mainly introduce the cutting operation panel part function design,

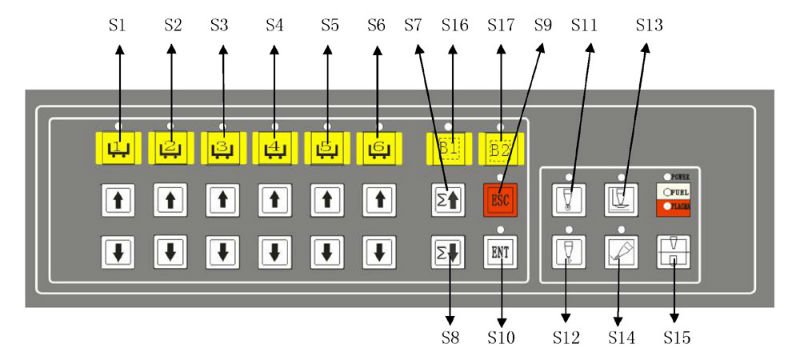

cutting operation panel.jpg





it has 27 keys.

S1~S6,  Choose cutting torch, Alternate Work Mode, the Arrow key below control the matched torch Up or Down, Instantaneous Work Mode.

S7,S8,  Manual operation of General Up and Down, Instantaneous Work Mode

S9,S10   S10 lock the chosen torch,S9 release the lock function.

S11   Preheat operation key, Alternate Work Mode, effective in gas cutting.

S12   Alternate Work Mode, manual control Gas Feed on Gas cutting; manual control Arc Start on plasma cutting

S13  Auto Height Control Enable key, Alternate Work Mode, only it is enabled, cutting torch would be on Auto Height Control. When the Auto Height Control indicator flashes 2 times/second, Auto Height Control enables, until the indicator ON, then cutting torch is on Auto Height Control Mode.

S14   Fire Key, Instantaneous Work Mode, effective on Gas cutting

S15   Choose cutting mode, switch between plasma cutting and gas cutting. When the related indicator is on, it is on named cutting mode. When it is done automatically, this signal is completed by CNC controller via designated code.

S16,S17   Spare key, please refer to 3.1.4.

Special function of B1,B2

B1, B2 on Operation Panel are used to control Relay S15, S16 on System Control PCB, and output via SPA5, SPA6.

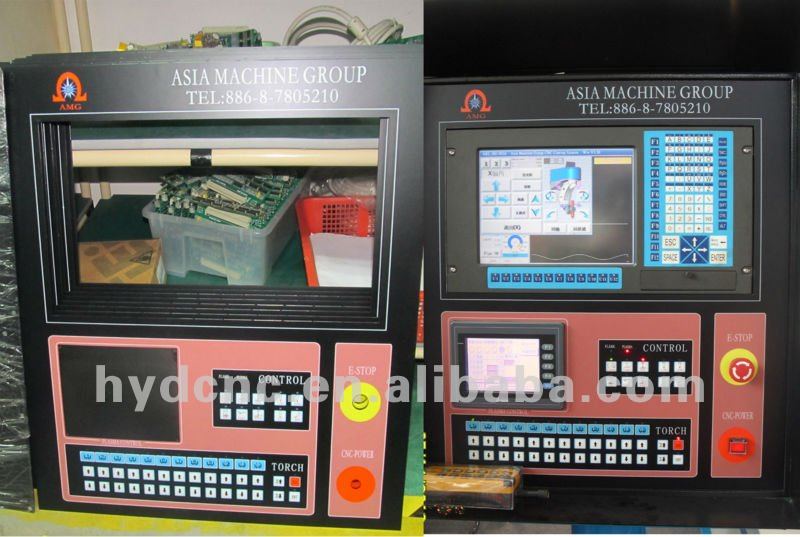

The operation panel we designed for FastCNC controller is 12 torches on panel, on machine as follow,

AMM console.jpg
