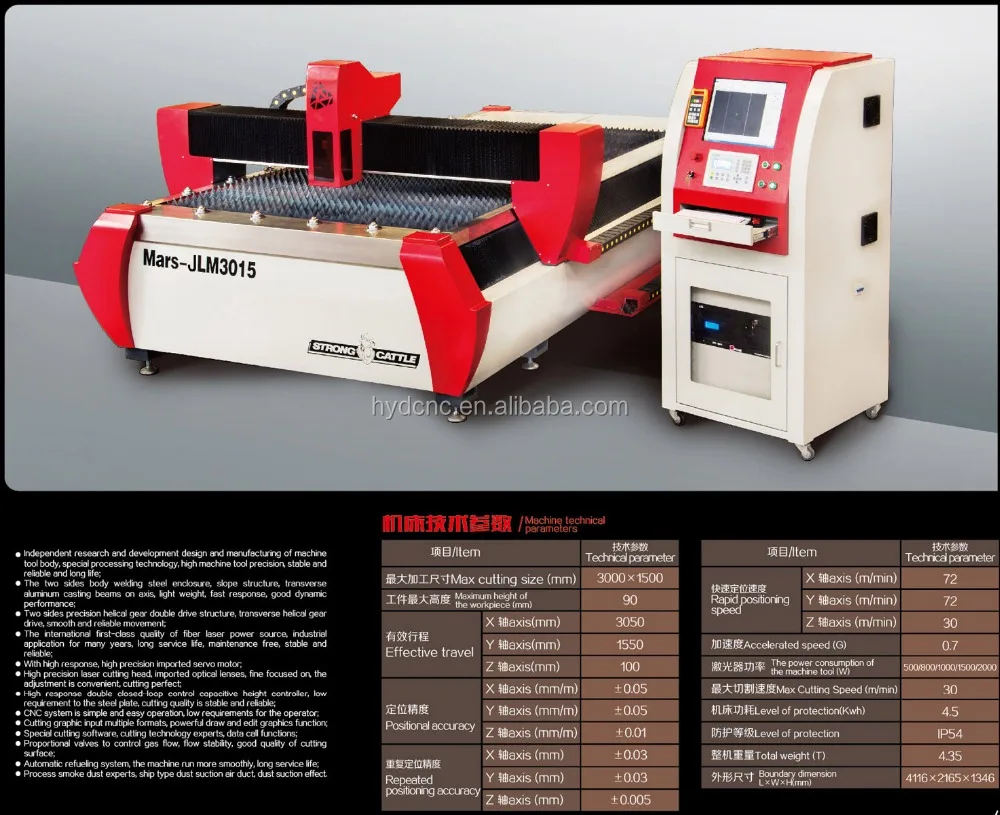

Factory cost fiber laser cutting machine 1000W-3000W

FOB Reference Price:Get Latest Price
US $1-10,000 / Sets
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
1500*3000mm
Cutting Speed:
-
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Condition:
New
Cutting Thickness:
-
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
-
Place of Origin:
China (Mainland)
Brand Name:
QIANLIAN
Model Number:
JLM3015
Certification:
CCC, CE, GS, ISO, SGS, UL
price:
factory price
warranty:
2 years
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard packing
Port
Shanghai

Open type double auto feeding table fiber laser cutting machine.

This is a new design we made for laser power below 2000W, It just adds around 10,000USD on a single table, thus more affordable to users.

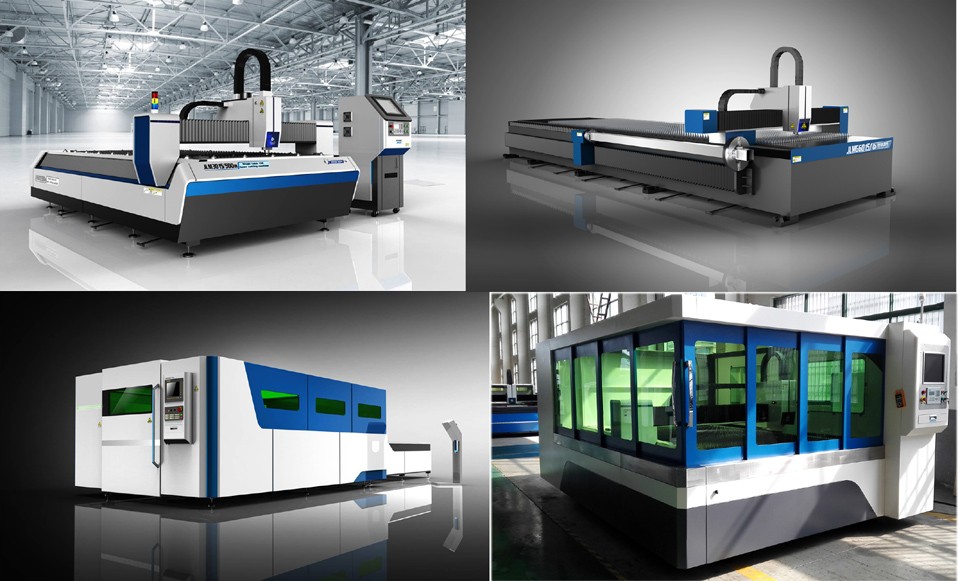

3015, 4015, 4020, 6020 table available.

With or without protective cover,  customize as your request.

Round/Square tube cutting available.





Position accuracy

X axis(mm/m)

±0.03

Y axis(mm/m)

±0.03

Z axis(mm/m)

±0.01



Repeated

accuracy

X axis(mm)

±0.02

Y axis(mm)

±0.02

Z axis(mm)

±0.005

Idle

Speed

X axis(m/min)

120

Y axis(m/min)

120

Z axis(m/min)

15

Acceleration (G)

X axis:1.1G;  Y axis: 1.05G

Work table bearing(kg)

1250kg

Worktable up time(second)

15s

Worktable exchange time

25—30s

Max cutting speed

30m/min

Max cutting thickness

16mm/CS; 6mm/SS

Power consumption

16.75kw/h

Protection level

IP54





Machine parts list

No

Item

Brand

Origin

1

Machine

Qiaolian

China

2

AC

Qiaolian

China

3

Fiber laser

Trumpf

Germany

4

Laser head

Precitec

Germany

5

Chiller

TongFei

Designated by Trumpf

6

CNC controller

PA8000

Germany

7

Gear rack

alpha

France

8

Linear guide

THK

Japan

9

Servo

Yaskawa

Germany

10

Ballscrew

HIWIN

Taiwan

11

Gearbox

alpha

France

12

Proportional valve

SMC

Japan

13

Pressure valve

CKD

Japan

14

Auto focus system

Precitec

Germany

15

Relay

Schneider

France

16

Software

Qiaolian

China

17

Separate Worktable controller

Sankyo

Janpan

18

Worktable

Qiaolian

China

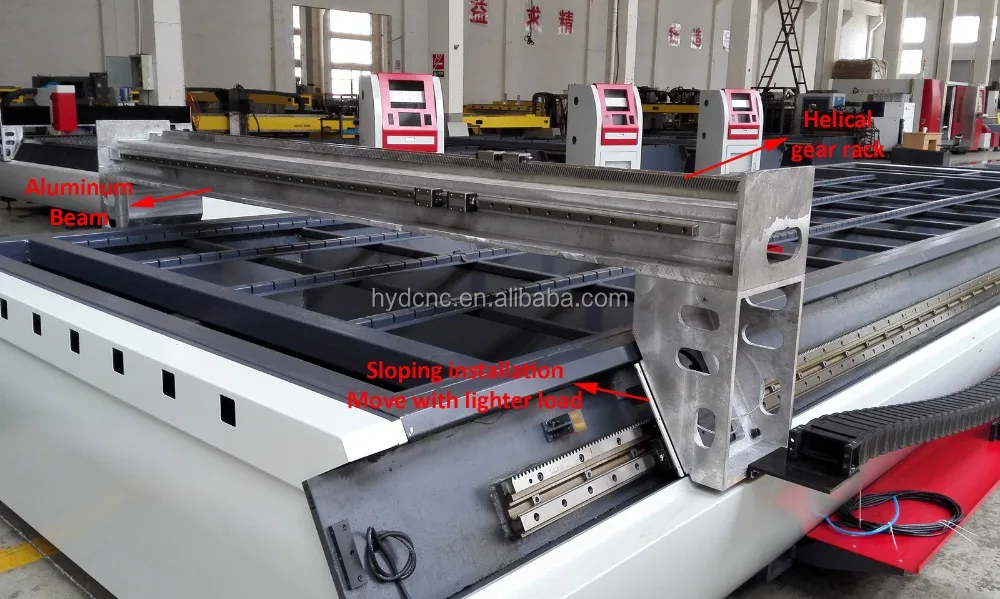

3015.jpg958.jpgAluminum beam.jpgAuto exhauting design.jpg
