Hot selling Laser auto focus system laser torch height controller CHC-1000L

FOB Reference Price:Get Latest Price
US $1,000-1,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Applicable Material:
Metal
Laser Type:
Fiber Laser
Condition:
New
CNC or Not:
Yes
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
HYD
Model Number:
CHC-1000L
Certification:
CE, ISO
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
carton box
Port
shenzhen
Lead Time :
3 work days

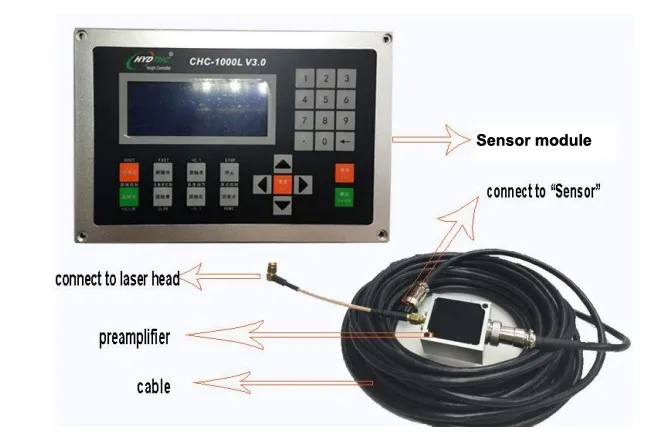

CHC-1000L is a closed-loop controller for laser cutting height control( called Auto focus system in laser cutting field). By providing a unique Ethernet communication(TCP/IP protocol) interface, it can support many funnctions with CNC controller for laser cutting, such as automatic tracking of cutting height, segmented piercing, progressive piercing, edge seek, leapfrog, arbitrary setting of lift-up height of cutting head.

Thanks to our years experience of different kinds of torch height controller design, Currently CHC-1000L should have better response rate than other similar products.



Performance Description
Sampling rate: 1000 times per second.
Static measurement accuracy: 0.001mm.
Dynamic response accuracy:0.05mm.
Following range: 0-25mm.
The signal will not decay with strong capacitity of resisting when the length of signal transmission cable is up to 100m.
Support network communications and U disk online update.
Adapt to any cutting head and nozzle.
Support alarm while hitting the board and beyong the edge.
Support edge detection and automatica inspection.
Automatic calibration process, with fast and easy operations.
Support leapfrog and segmented piercing.
Support oscilloscope functions to detect the capacitance in real time.



It supports I/O communication  and  Ethernet communication(TCP/IP protocol) with CNC controller both,  so CHC-1000L can supports almost any CNC controller on market.

 laser controller for metal laser cutting machine auto focus controller CHC-1000L

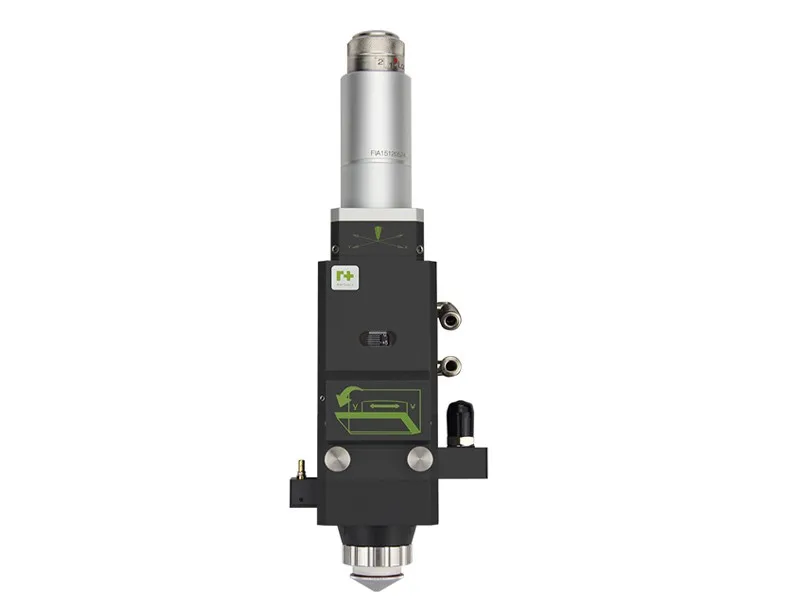

We can also supply PA8000 cnc controller and Raytool AG laser cutting head as a complete solution for your laser cutting machine.

laser controller for metal laser cutting machine auto focus controller CHC-1000Llaser controller for metal laser cutting machine auto focus controller CHC-1000L



Please visit our website at follow link for details.

http://en.hydcnc.com/en/products/xiang-guan-pei-jian.html
