Han's Industrial air cooled water chiller double-temperature for 2KW fiber laser source

FOB Reference Price:Get Latest Price
US $200-1,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Cooling Mode:
Air Cooling
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Han's
Model Number:
HC075M1-21A
After-sales Service Provided:
Overseas service center available
SupplyAbility
SupplyAbility:
3000 Set/Sets per Week
Packaging & Delivery
Packaging Details
yellow carton or wooden case
Port
shenzhen
Lead Time :
3-7 days

Hans Industrial Air Cooled Chiller For 1000W fiber laser cutting machine.



The chiller is made by Han's laser, No.1 laser brand in China, they make chiller to make sure the machine stability, can make sure 5-10 years working normal.



Many small chiller factory use cheap price on core parts, not stable. The laser source can't work normal if chiller has problem.



Paramters:

model:HC075M1-21A(SC)

Rated cooling capacity:7.5KW(when water temperature 21℃,ambient temperature 25℃)

Refrigerant:R22

Heat dissipation mode:Air cooling

Power supply:380V 3N~/50Hz

Rated power/current: 4.5KW/12.2A

Operation ambient temperature:15℃~35℃

power connector definition:  brown:fire wire L1;black:fire wire L2;gray:fire wire L3;blue:zero lineN;yellow green:GND

weight: 152kg


main system(low-temperature water )

Deputy system(high-temperature water )

Circulating water filtering precision

50μm

50μm

Temperature control precision

±1.0℃

±1.0℃

Circulating water temperature

5 ℃~40

5 ℃~40

Temperature alarm

5 low temperature alarm,40  high  temperature alarm

5 low temperature alarm,40 high  temperature alarm

Flow alarm

3.0LPM±20%

0.7LPM±20%

Rated flow

117LPM

117LPM

Rated head

38m

38m

Water tank effective volume

60L

60L

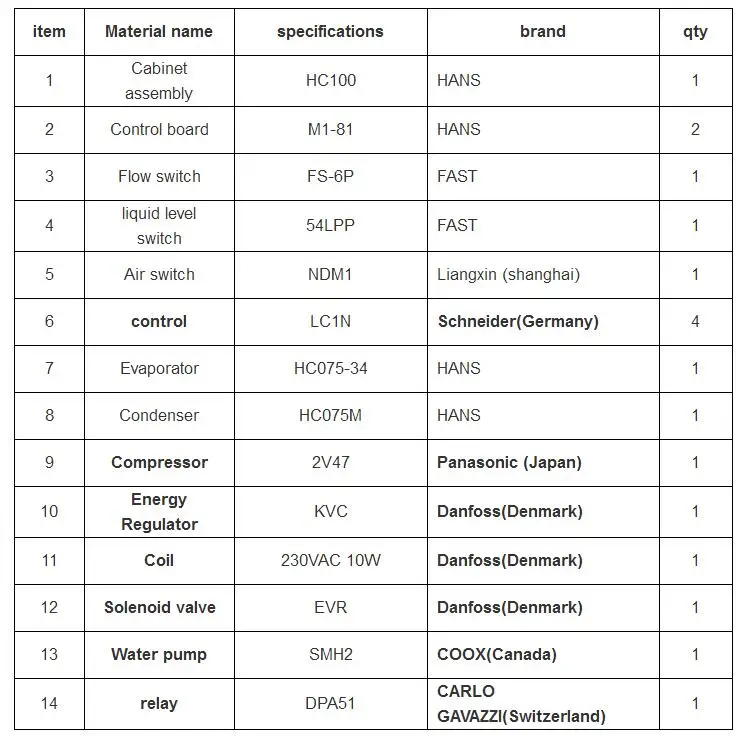

Core parts list:

2KW package list.jpg
